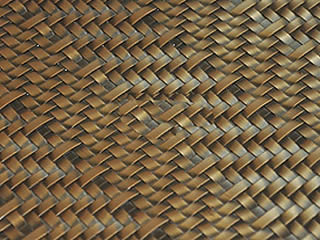

Metal Mesh Cladding
NO.S: HUA-WWW-101
Material: SS304, SS316, SS316L, Bronze
Weight: 2.5kg/sq.m

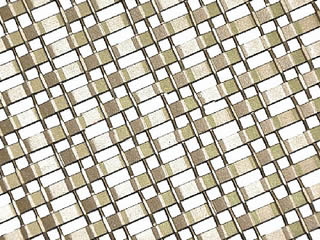

Metal Partiton Parameters
NO.S: HUA-WWW-102
Material: SS304, SS316, SS316L
Warp Diameter: 1mm*3
Weight: 5.82kg/sq.m
Warp Pitch: 16mm
Weft Diameter: 4mm*1mm
Weft Pitch: 7mm

Metal Mesh Screen
NO.S: HUA-WWW-103
Material: SS304, 316, 316L
Warp Diameter:2*1.25m
Weight: 10/sq.m
Warp Pitch: 5mm
Weft Diameter: 2mm
Weft Pitch: 5mm

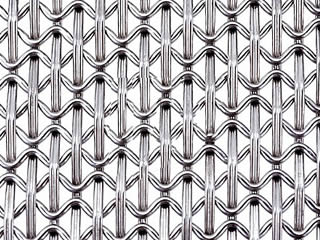

Metal Mesh Ceiling
NO.S: HUA-WWW-104
Material: Stainless, 304, 316, 315L
Warp Diameter: 1.2mm x 2
Weight: 8.74kg/㎡
Warp Pitch:5mm
Weft Diameter:2.0mm
Weft Pitch:5mm

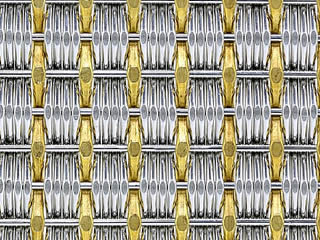

Woven Metals
NO.S: HUA-WWW-105
Material: Stainless, 304, 316, 317L
Warp Diameter: 1.5mm
Weight: 13kg/㎡
Warp Pitch:6.7mm
Weft Diameter: 1.5mm x4
Weft Pitch: 8mm

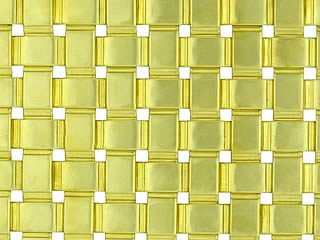

Brass Crimpled Mesh
NO.S: HUA-WWW-106
Material: Stainless, 304, 316, 317L
Warp Diameter: 1mm x 10
Weight: 14.07kg/㎡
Warp Pitch: 13mm
Weft Diameter: 1mm x 10
Weft Pitch: 13mm

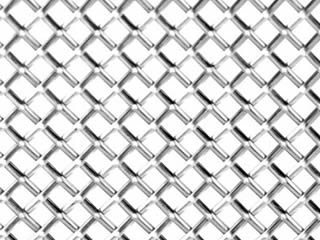

Metal Divider
NO.S: HUA-WWW-107
Material: Stainless, 304, 316, 316L
Warp Diameter: 1.2mm x 1
Weight: 3.66kg/㎡
Warp Pitch: 5mm
Weft Diameter: 1.2mm
Weft Pitch: 5mm

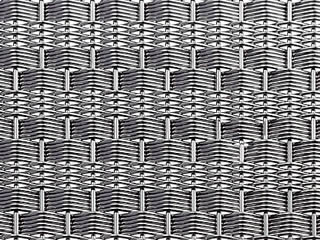

Mesh For Elevator
NO.S: HUA-WWW-108
Material: Stainless, 304, 316, 316L
Warp Diameter: 2mm x 1
Weight: 12.7kg/㎡
Warp Pitch: 8mm
Weft Diameter: 1.5mm
Weft Pitch: 1.5mm

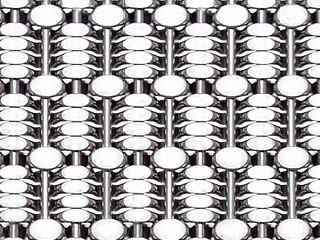

Elevator Mesh
NO.S: HUA-WWW-109

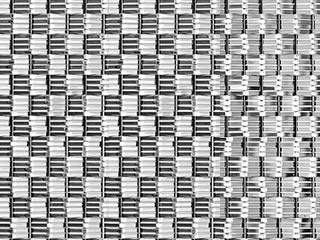

Elevator Cab Mesh
NO.S: HUA-WWW-110
Material: SS304, 316, 316L

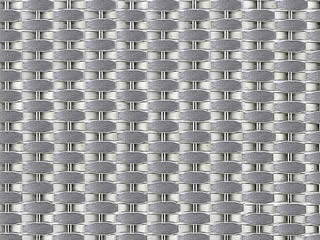

Rigid Mesh
NO.S: HUA-WWW-111

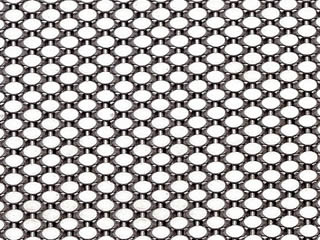

Cab Woven Metals
NO.S: HUA-WWW-112
Material: Stainless, 304, 316, 316L
Warp Diameter: 1.5mm x 1
Weight: 16.1kg/㎡
Warp Pitch:5mm
Weft Diameter:2mm
Weft Pitch: 3mm

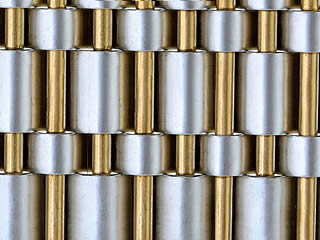

Brass Elevator Mesh
NO.S: HUA-WWW-113
Material: Stainless, 304, 316, 316L
Warp Diameter: 3.0mm
Weight: 20.21kg/㎡
Warp Pitch: 6.15mm
Weft Diameter: 1.2mmx12.6mm

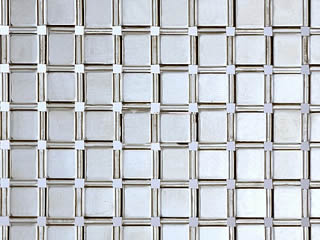

Metal Screen
NO.S: HUA-WWW-114
Material: SS304, 316, 316L
Warp Diameter:1.5mm*9.5mm
Weight: 18.4kg/㎡
Warp Pitch: 12.8mm
Weft Diameter:1.5mm*9.5mm

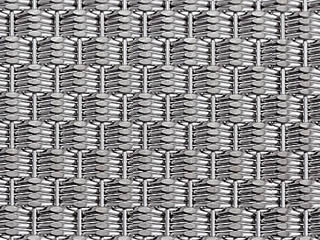

Metal Lobby
NO.S: HUA-WWW-115
Material: Stainless, 304, 316, 316L
Warp Diameter: 1.5mm
Weight: 14.8kg/㎡
Warp Pitch: 6.7mm
Weft Diameter: 2.0mm
Weft Pitch: 2mm x 4

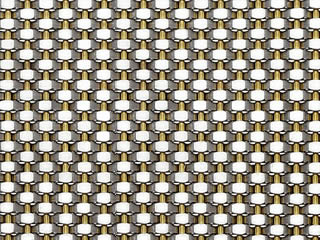

Brass Crimpled Mesh
NO.S: HUA-WWW-116
Material: Stainless, 304, 316, 316L
Warp Diameter: 1.5mm
Weight: 16.1kg/㎡
Warp Pitch: 4.95mm
Weft Diameter: 2.7mm x 1.6mm
Weft Pitch: 2.7mm

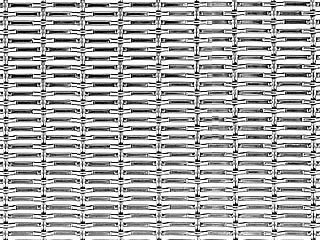

Architectural Mesh Facades
NO.S: HUA-WWW-117
Material: Stainless, 304, 316, 316L
Warp Diameter: 1.2mm x 2
Weight: 6.44kg/㎡
Warp Pitch: 17.5mm
Weft Diameter: 2mm
Weft Pitch: 6mm

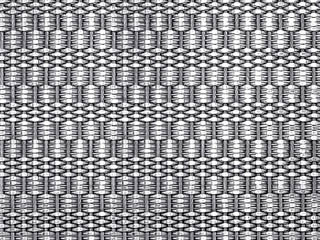

Flexible Elevator Mesh
NO.S: HUA-WWW-118
Material: Stainless, 304, 316, 316L
Warp Diameter: 1.5mm x 1
Weight: 11.26kg/㎡
Warp Pitch: 5mm
Weft Diameter: 1.5mm
Weft Pitch: 1.7mm

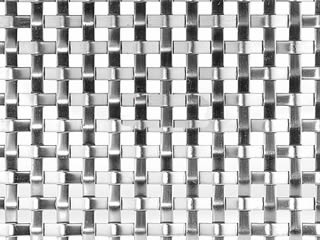

Flat Crimpled Mesh
NO.S: HUA-WWW-119
Material: Stainless, 304, 316, 316L
Warp Diameter: 1.5mm x 6
Weight: 12.23kg/㎡
Warp Pitch: 12mm
Weft Diameter: 1.5mm x 6
Weft Pitch:12mm

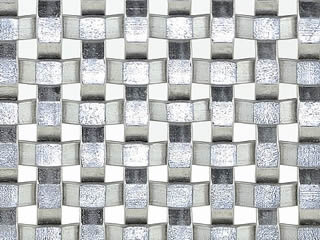

Square Mesh
NO.S: HUA-WWW-120
Material: Stainless, 304, 316, 316L
Warp Diameter: 3.4mm x 1.1
Weight: 11.55kg/㎡
Warp Pitch: 6.6mm
Weft Diameter: 3.4mm x 1.1
Weft Pitch: 6.6mm
