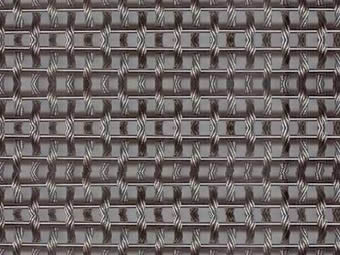

NO.S: HUA-MF-001
Opening area: 32%
(Cable Dia.): 2.5mm×1 group
Cable pitch: 5 mm
Rod Dia. : 2mm
Rod pitch: 6mm
Weight: 12.17 kg/㎡

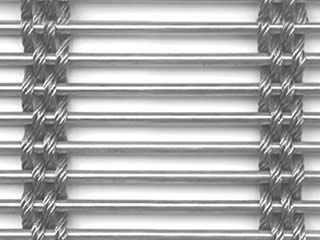

NO.S: HUA-MF-002
Opening area: 40%
Cable Dia.: 2 mm×4 groups
Cable pitch: 50 mm
Rod Dia.: 3 mm
Rod pitch: 6 mm
Weight: 11.2 kg/㎡

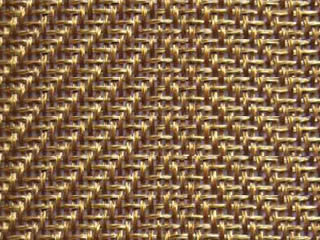

NO.S: HUA-MF-003
Opening area: 20%
Cable Dia.: 0.6mm×1group
Cable pitch:1.27mm
Rod Dia.:1.2mm
Rod pitch:1.95mm
Weight: 6.50kg/㎡

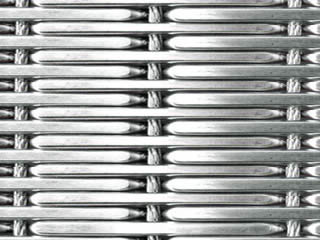

NO.S: HUA-MF-004
Opening area: 0
Cable Dia.: 2mm×1group
Cable pitch:17.5mm
Rod Dia. :1.5mm
Rod pitch:1.5mm
Weight:10.98kg/㎡

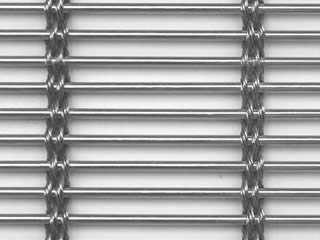

NO.S: HUA-MF-005
Opening area:45%
Cable Dia.: 2 mm×4 groups
Cable pitch: 80 mm
Rod Dia.: 3 mm
Rod pitch: 6 mm
Weight: 10.8 kg/㎡

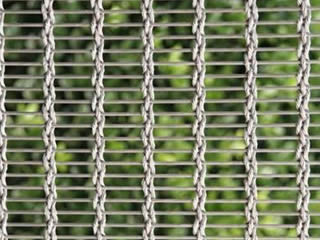

NO.S: HUA-MF-006
Opening area: 44%
Cable Dia.: 1mm×4 groups
Cable pitch: 36 mm
Rod Dia.: 2mm
Rod pitch: 4mm
Weight: 7.06 kg/㎡

NO.S: HUA-MF-007
Opening area: 58%
Flat wire Dia.: 1.75mm×0.6mm
Flat wire pitch: 5mm
Weight: 3kg/㎡

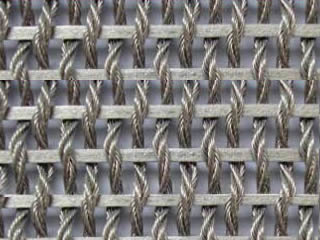

NO.S: HUA-MF-008
Opening area:40%
Cable Dia.: 1.6mm×1group
Cable pitch:3.2mm
Flat wire Dia.: 1.75mm×0.6mm
Rod pitch: 6mm
Weight: 5kg/㎡

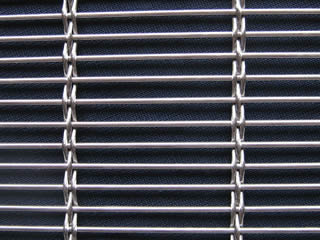

NO.S: HUA-MF-009
Opening area: 65%
Cable Dia.: 2mm×3groups
Cable pitch: 80mm
Rod Dia.: 3mm
Rod pitch:10mm
Weight: 6.6kg/㎡

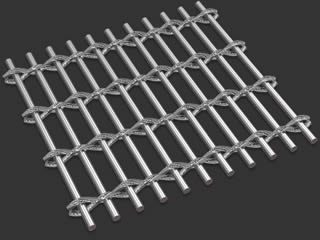

NO.S: HUA-MF-010
Opening area: 62%
Cable Dia.: 2.75mm×2 groups
Cable pitch: 40mm
Rod Dia.:4mm
Rod pitch:14.5mm
Weight: 9.41kg/㎡

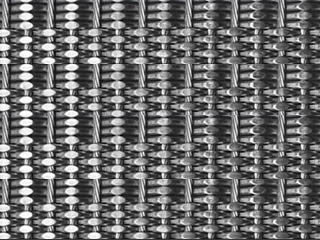

NO.S: HUA-MF-011
Opening area: 0
Cable Dia.: 1.5mm×1groups
Cable pitch: 4.8mm
Rod Dia.: 1.5mm
Rod pitch: 1.5mm
Weight: 11.6kg/㎡

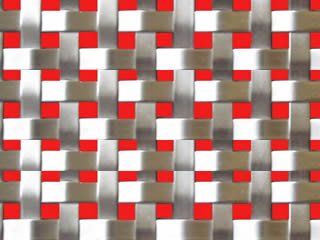

NO.S: HUA-MF-012
Opening area: 59%
Flat wire Dia.: 7mm×1mm
Flat wire pitch: 13mm
Weight: 8.79kg/㎡

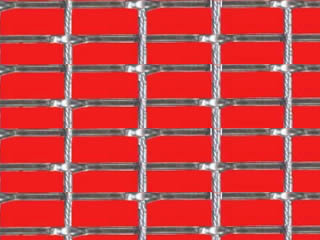

NO.S: HUA-MF-013
Opening area: 63%
Cable Dia.: 2mm×1group
Cable pitch:17.5mm
Rod Dia.: 2mm
Rod pitch: 7mm
Weight: 5kg/㎡

NO.S: HUA-MF-014
Opening area: 27%
Cable Dia.: 2mm×1group
Cable pitch: 3.1mm
Flat wire Dia.:1.75mm×0.6mm
Rod pitch: 5mm
Weight: 10.00kg/㎡
